Description

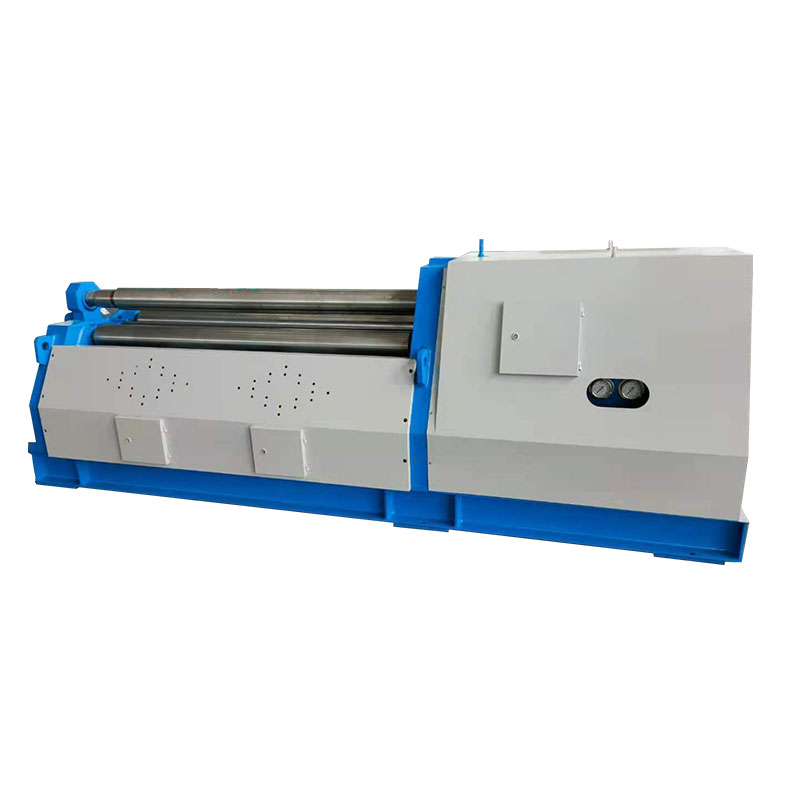

The W12-4×1500 is a compact, production-ready 4 roll plate roller engineered for accurate cylinders, large radii, and cones on 4 mm × 1500 mm plates (mild steel). With a hydraulic four-roll layout, the machine achieves one-pass pre-bending without turning the plate, minimizing straight edges and setup time. A portable operator console, safety interlocks, and options like NC/CNC programs, cone device, and top/side supports make it ideal for job shops and light-duty production across petro-chemical, boiler, shipbuilding, water & power, and steel structure industries.
Specifications
| Specification | W12-4×1500 | ||
|---|---|---|---|
| Max. rolling thickness (full load) | Common mild steel | ≤ 4 mm | |
| Max. pre-bending thickness (full load) | Common mild steel | ≤ 3 mm | |
| Max. rolling width (cylinder length) | 1500 mm | ||
| Min. roll diameter at max spec | 500 mm | ||
| Yield limit S245 | 245 MPa | ||
| Upper roller diameter | 150 mm | ||
| Lower roller diameter | 150 mm | ||
| Lower roller speed | 80 mm/min | ||
| Side roller diameter | 130 mm | ||
| Side roller speed | 80 mm/min | ||
| Working roller | Material | 42CrMo | |
| Hardness | HB240–286 | ||
| Hydraulic system pressure | 20 MPa | ||
| Rolling speed | 4.5 m/min | ||
| Main motor power | 4 kW | ||
| Cone accessory | Not standard | ||

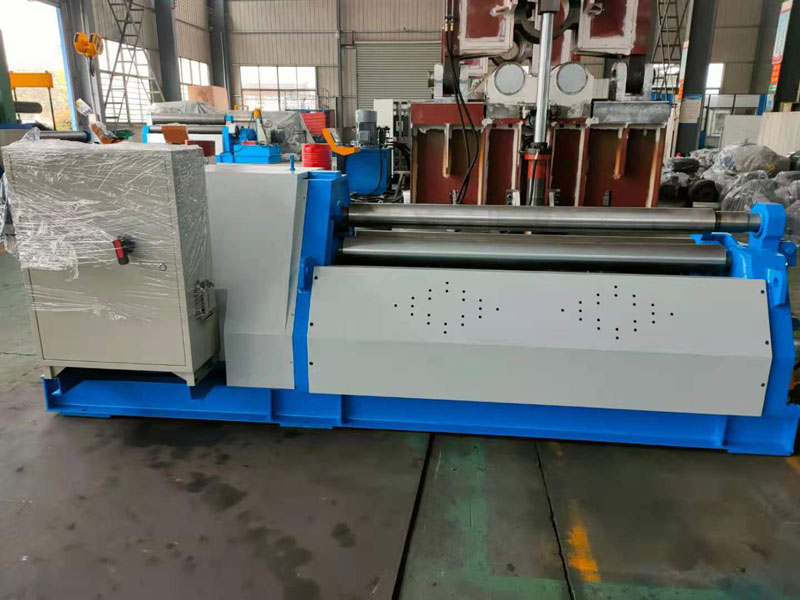

Machine Details
Features
1.One-pass pre-bending: no plate turning; minimal straight edge; faster cycle time
2.Hydraulic 4-roll: top roll main drive (hydraulic motor),lower pinch rolls clamp vertically
3.Asymmetric rolling: end pre-bending on both ends for round/curved/conical parts
4.Portable console + interlocks: operator-friendly and safer to run
5.Repeatable accuracy:hardened & crowned rolls, stable guidance, consistent diameter
