Description

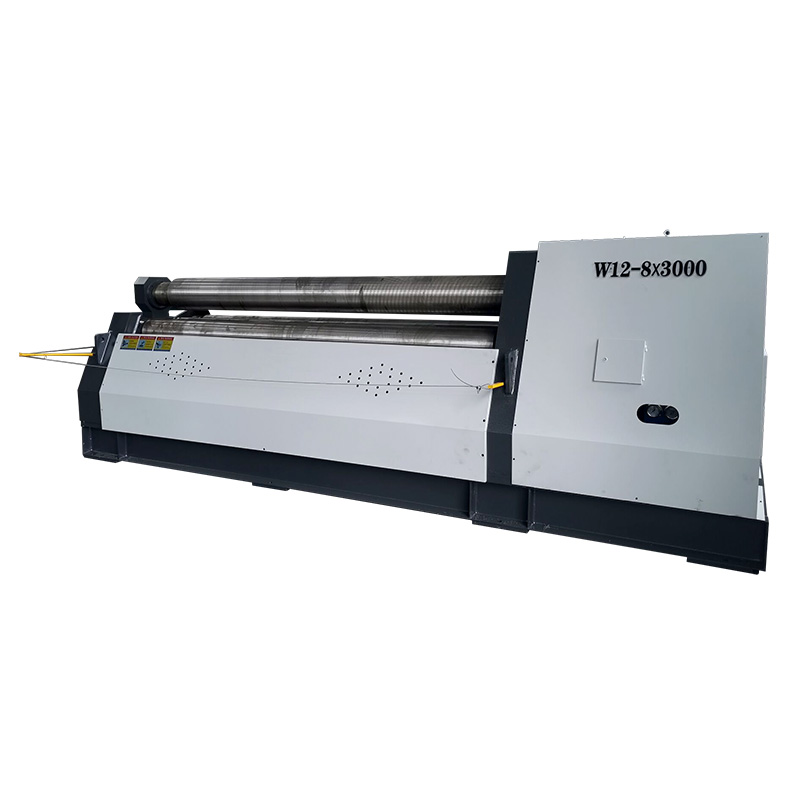

The W12-8×3000 is a production-ready 4 roll plate rolling machine designed for accurate cylinders, large radii, and cones on 8 mm × 3000 mm plates (mild steel). The hydraulic 4-roll layout enables true one-pass pre-bending without turning the plate, minimizing straight edges and setup time. With options for NC/CNC programs, cone device, and top/side supports, it suits fabrication shops, vessel/tank makers, shipbuilding, and steel-structure projects that require repeatable quality and higher throughput.
Specifications
| Specification | W12-8×3000 |
|---|---|
| Rolling thickness | 8 mm |
| Pre-bending thickness | 6 mm |
| Rolling width | 3000 mm |
| Yielding limit of sheet metal | 245 MPa |
| Min full-loading diameter of coiled plate | Ø500 mm |
| Diameter of upper roll | Ø280 mm |
| Diameter of lower roll | Ø260 mm |
| Diameter of side roll | Ø230 mm |
| Rolling speed | 4 m/min |
| Hydraulic system pressure | 16 MPa |
| Main motor power | Hydraulic motor 7.5 kW |

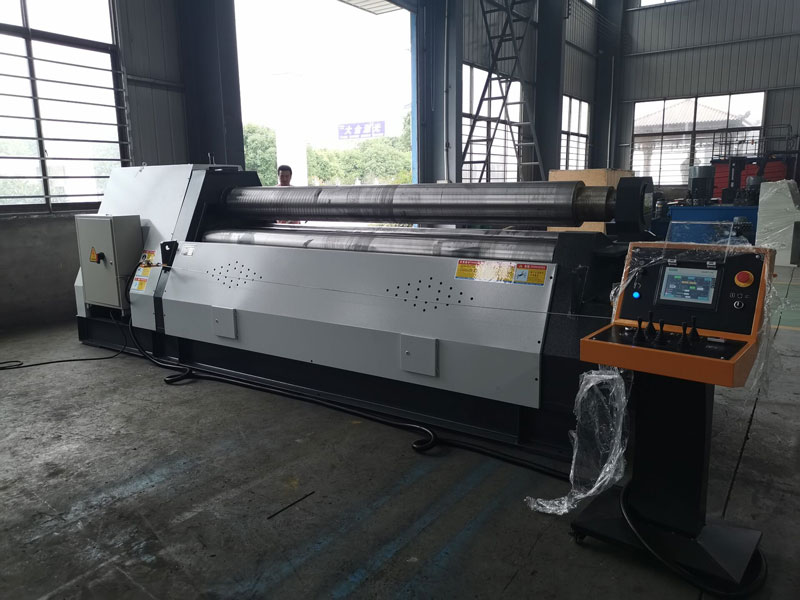

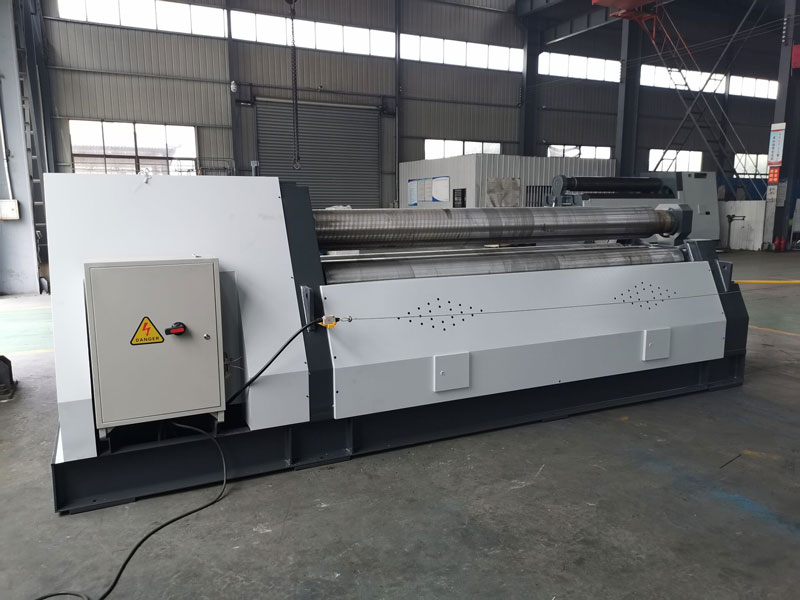

Machine Details
Features
1.One-pass pre-bending: no plate turning; minimal straight edge; faster cycle time
2.Hydraulic 4-roll: top roll main drive (hydraulic motor),lower pinch rolls clamp vertically
3.Asymmetric rolling: end pre-bending on both ends for round/curved/conical parts
4.Portable console + interlocks: operator-friendly and safer to run
5.Repeatable accuracy:hardened & crowned rolls, stable guidance, consistent diameter
