Description

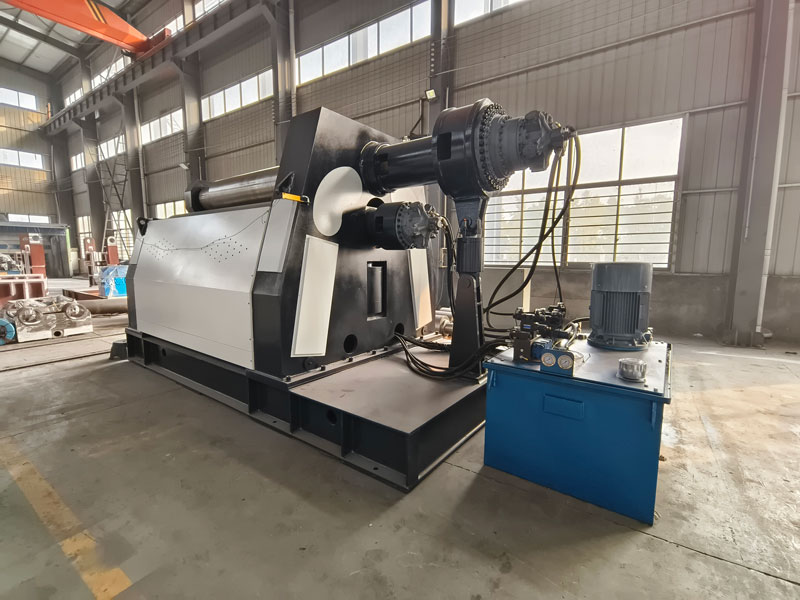

The W12-40×2500 is a heavy-duty industry plate rolling machine engineered for precise cylinders, large radii and cones on 40 mm × 2500 mm mild-steel plates. Its hydraulic four-roll architecture enables true one-pass pre-bending without turning the plate, minimizing straight edges and setup time while delivering repeatable accuracy. With NC/CNC options, hardened/crowned rolls, and available top/side supports, it is built for tank & vessel producers, shipbuilding and steel-structure fabrication lines.
Specifications
| Model | Max. rolling thickness (mm) | Max. pre-bending thickness (mm) | Max. rolling width (mm) | Diameter of top roller (mm) | Diameter of bottom roller (mm) | Diameter of side rollers (mm) | Min. full-loading diameter of coiled plate (mm) | Rolling speed (m/min) | Motor power (kW) |
|---|---|---|---|---|---|---|---|---|---|
| W12-6×1500 | 6 | 4 | 1500 | 170 | 160 | 150 | 300 | 4 | 4 |
| W12-6×2000 | 6 | 4 | 2000 | 190 | 180 | 170 | 400 | 4 | 4 |
| W12-8×2000 | 8 | 6 | 2000 | 210 | 190 | 180 | 400 | 4 | 5.5 |
| W12-12×2000 | 12 | 8 | 2000 | 260 | 220 | 180 | 450 | 4.5 | 7.5 |
| W12-12×2500 | 12 | 8 | 2500 | 280 | 260 | 220 | 500 | 4.5 | 11 |
| W12-16×2000 | 16 | 12 | 2000 | 280 | 260 | 220 | 480 | 4.5 | 11 |
| W12-16×2500 | 16 | 12 | 2500 | 300 | 280 | 220 | 500 | 4.5 | 11 |
| W12-20×2000 | 20 | 16 | 2000 | 300 | 280 | 220 | 500 | 5 | 15 |
| W12-20×2500 | 20 | 16 | 2500 | 350 | 320 | 280 | 600 | 5 | 18.5 |
| W12-20×3200 | 20 | 16 | 3200 | 400 | 340 | 300 | 600 | 5 | 22 |
| W12-25×2500 | 25 | 20 | 2500 | 400 | 340 | 300 | 600 | 4 | 22 |
| W12-30×2500 | 30 | 25 | 2500 | 430 | 380 | 320 | 700 | 4 | 30 |
| W12-40×2500 | 40 | 30 | 2500 | 520 | 460 | 380 | 900 | 4 | 37 |
Machine Details
Features
1.One-pass pre-bending: no plate turning; minimal straight edge; faster cycle time

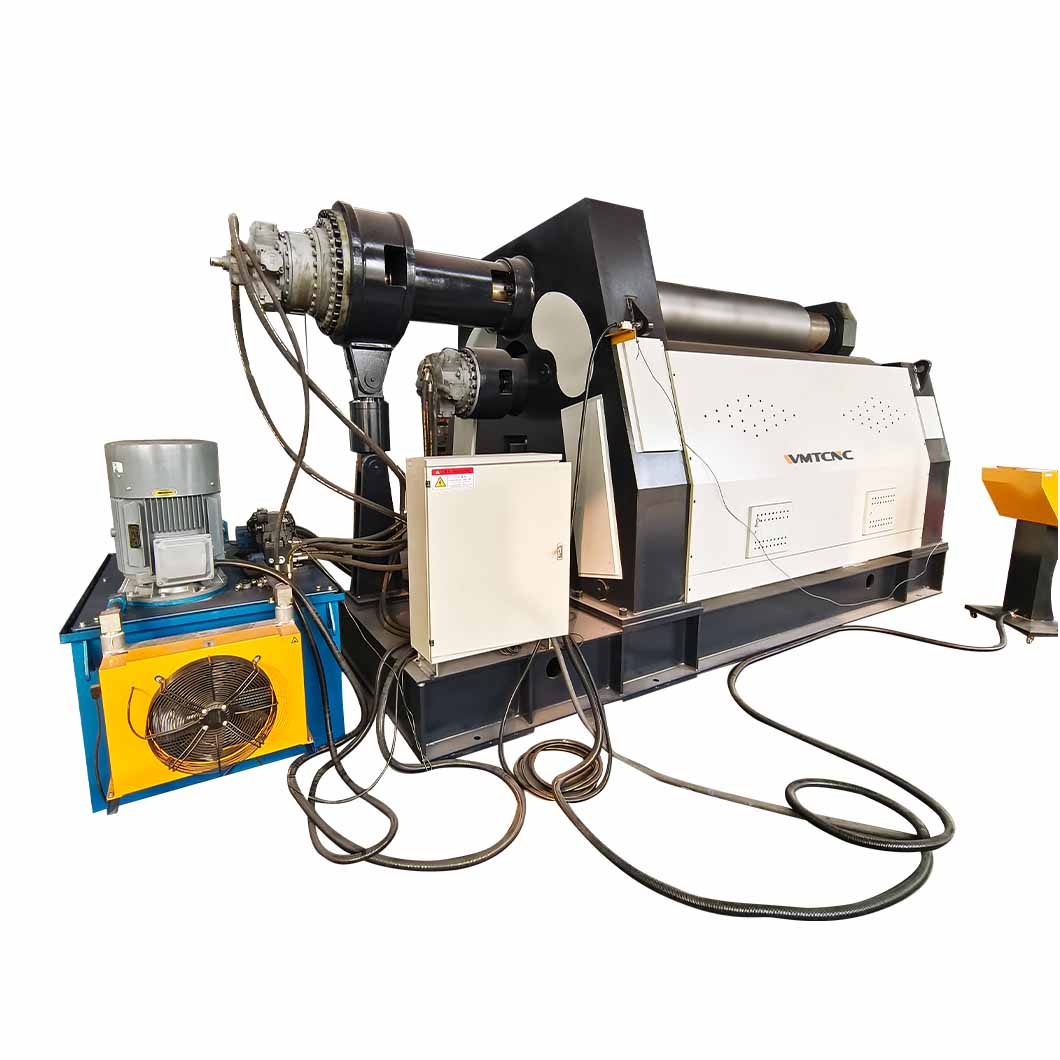

2.Hydraulic 4-roll: top roll main drive (hydraulic motor),lower pinch rolls clamp vertically
3.Asymmetric rolling: end pre-bending on both ends for round/curved/conical parts

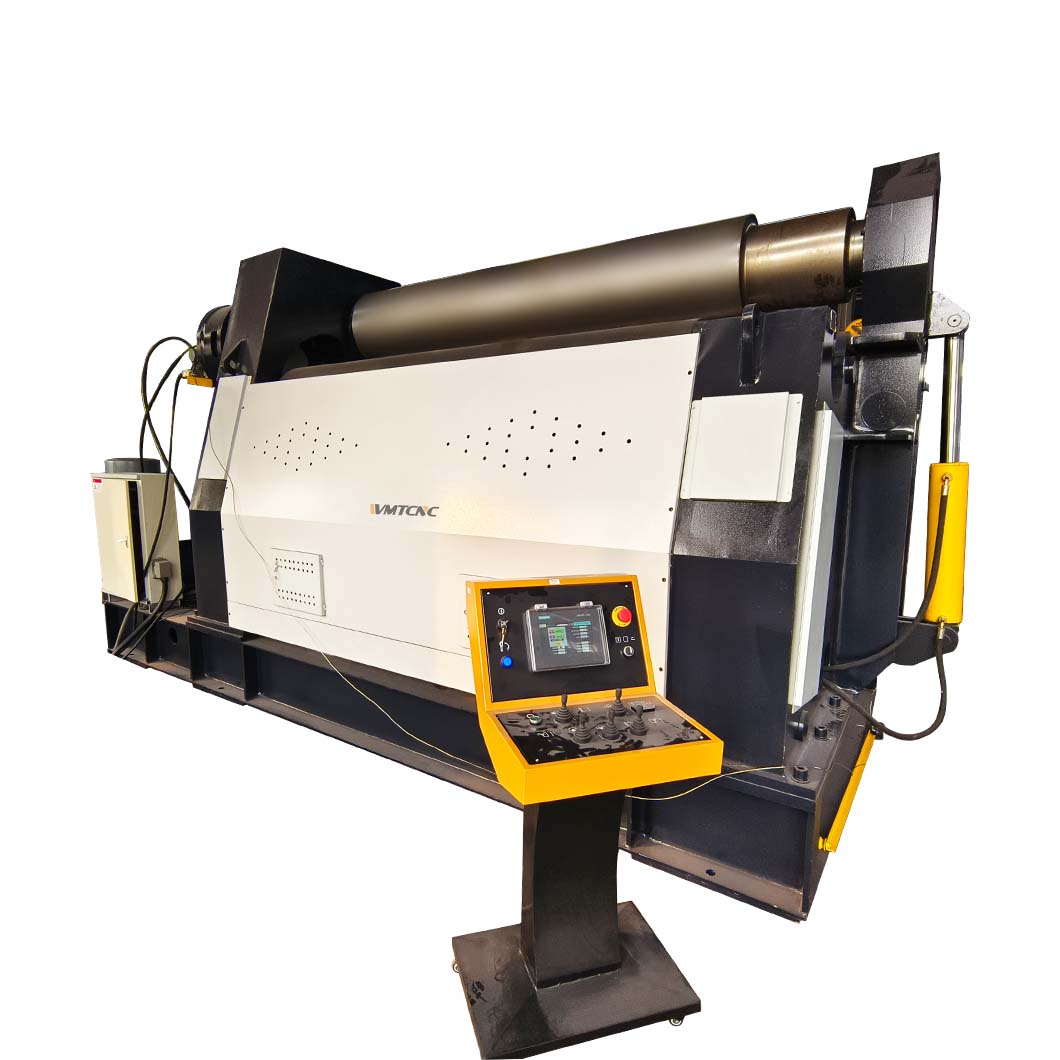

4.Portable console + interlocks: operator-friendly and safer to run
5.Repeatable accuracy:hardened & crowned rolls, stable guidance, consistent diameter
