Description

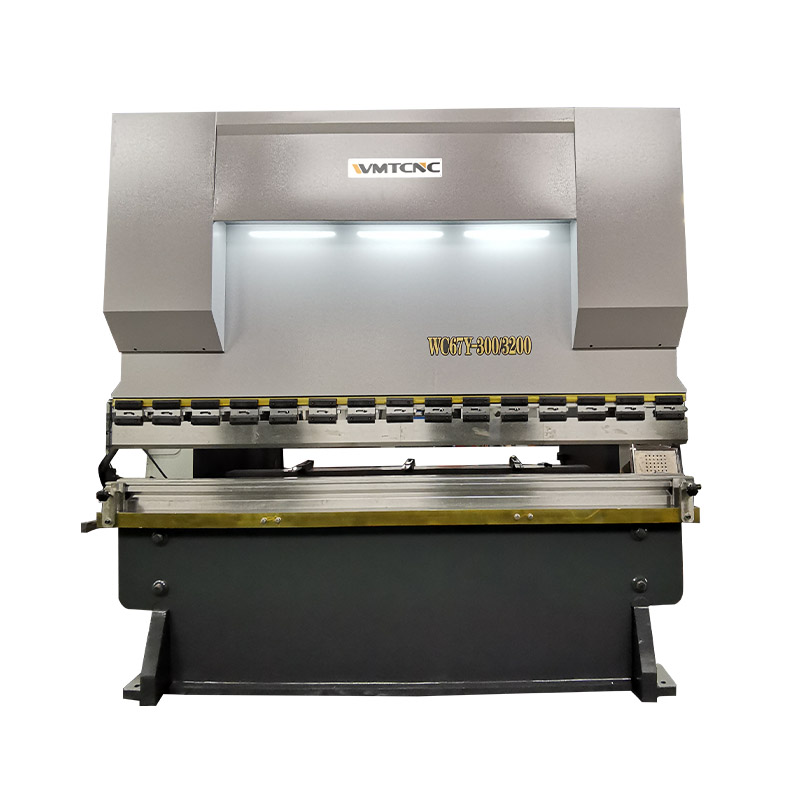

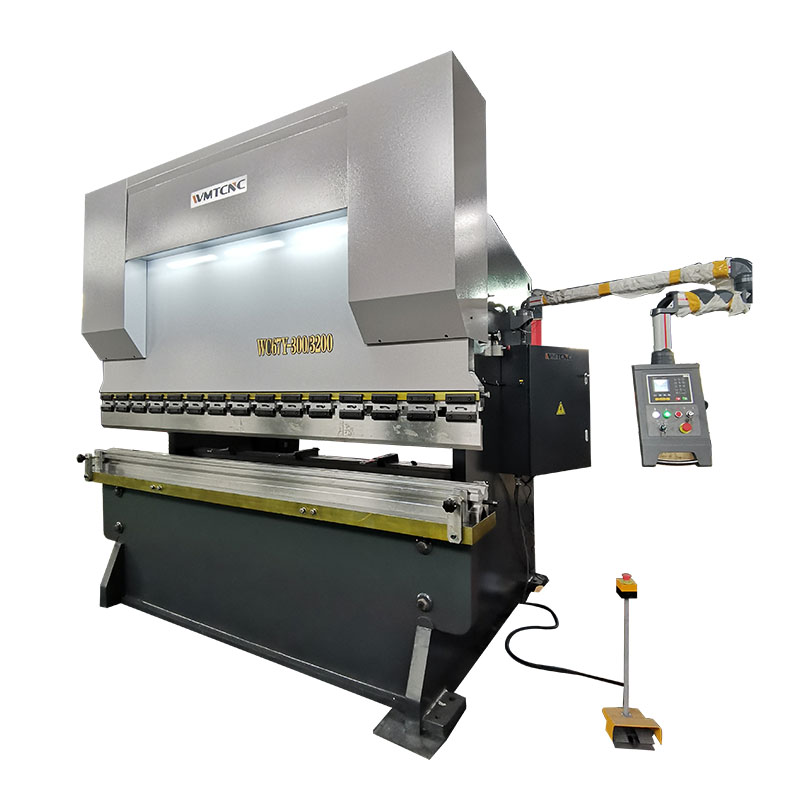

The WC67Y-300X3200 industrial press brake is a heavy-duty hydraulic bending machine engineered for demanding sheet metal applications. With a bending force of 300 tons and a working length of 3200mm, it delivers high precision and reliability in large-scale metal forming.
Built with a rigid steel-welded frame and processed with vibration stress relief, the machine guarantees long-term durability and stability. Its hydraulic top-drive system provides smooth and consistent pressure control, while imported sealing components ensure long service life with minimal maintenance.
Specifications
| Model | Nominal Pressure | Length of working table | Distance between uprights | Throat Depths | Stroke | Open height | Motor power |
|---|---|---|---|---|---|---|---|
| WC67Y/K-30/1600 | 300 kN | 1600 mm | 1250 mm | 200 mm | 90 mm | 300 mm | 4 kw |
| WC67Y/K-40/2000 | 400 kN | 2000 mm | 1650 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-40/2500 | 400 kN | 2500 mm | 2100 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-63/2500 | 630 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-63/3200 | 630 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-80/2500 | 800 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-80/3200 | 800 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/2500 | 1000 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/3200 | 1000 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/4000 | 1000 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/2500 | 1250 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/3200 | 1250 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/4000 | 1250 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-160/3200 | 1600 kN | 3200 mm | 2450 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-160/4000 | 1600 kN | 4000 mm | 3090 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-200/3200 | 2000 kN | 3200 mm | 2450 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/4000 | 2000 kN | 4000 mm | 3090 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/6000 | 2000 kN | 6000 mm | 4800 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-250/3200 | 2500 kN | 3200 mm | 2450 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/4000 | 2500 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/6000 | 2500 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-300/3200 | 3000 kN | 3200 mm | 2530 mm | 400 mm | 250 mm | 500 mm | 22 kw |
| WC67Y/K-300/4000 | 3000 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-300/6000 | 3000 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-400/4000 | 4000 kN | 4000 mm | 3090 mm | 400 mm | 320 mm | 600 mm | 22 kw |
| WC67Y/K-400/6000 | 4000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 37 kw |
| WC67Y/K-500/4000 | 5000 kN | 4000 mm | 3100 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-500/6000 | 5000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/4000 | 6000 kN | 4000 mm | 6200 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/6000 | 6000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
Features
1.Robust Steel Construction – Entirely steel-welded frame, stress-relieved for excellent strength and rigidity.

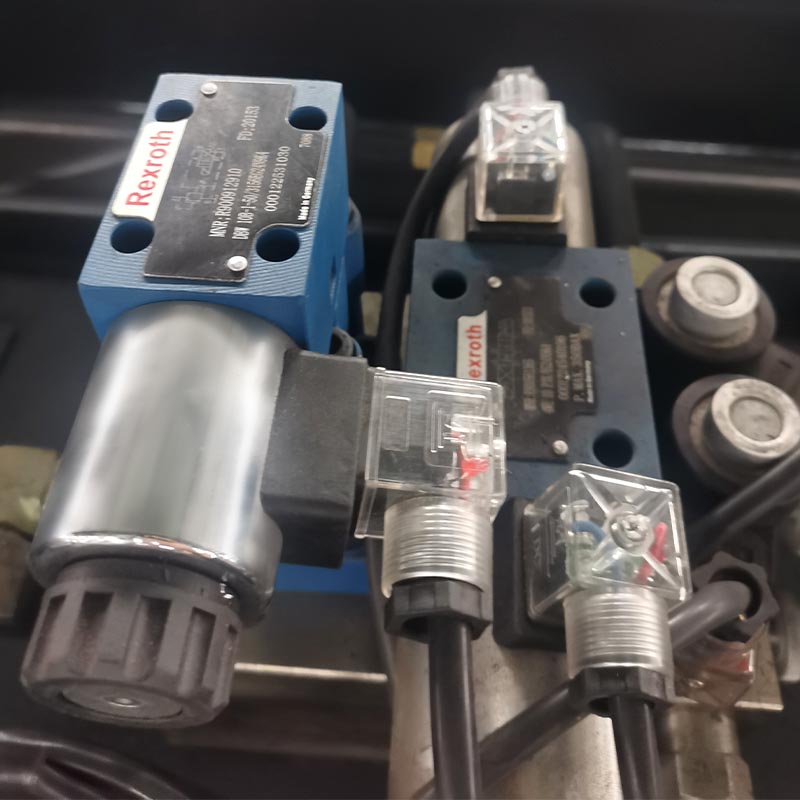

2.Hydraulic Top-Drive – Smooth operation with stepless pressure adjustment and imported sealing rings for high reliability.
3.Precision Synchronization – Mechanical stop and torsion bar system ensure uniform bending accuracy across the workpiece.
4.Motorized Backgauge Adjustment – Stroke and distance adjustable via motor, with digital meter display for precise control.
5.Deflection Compensation – Built-in crowning device for the upper die (optional lower die compensation available for models above 250T).

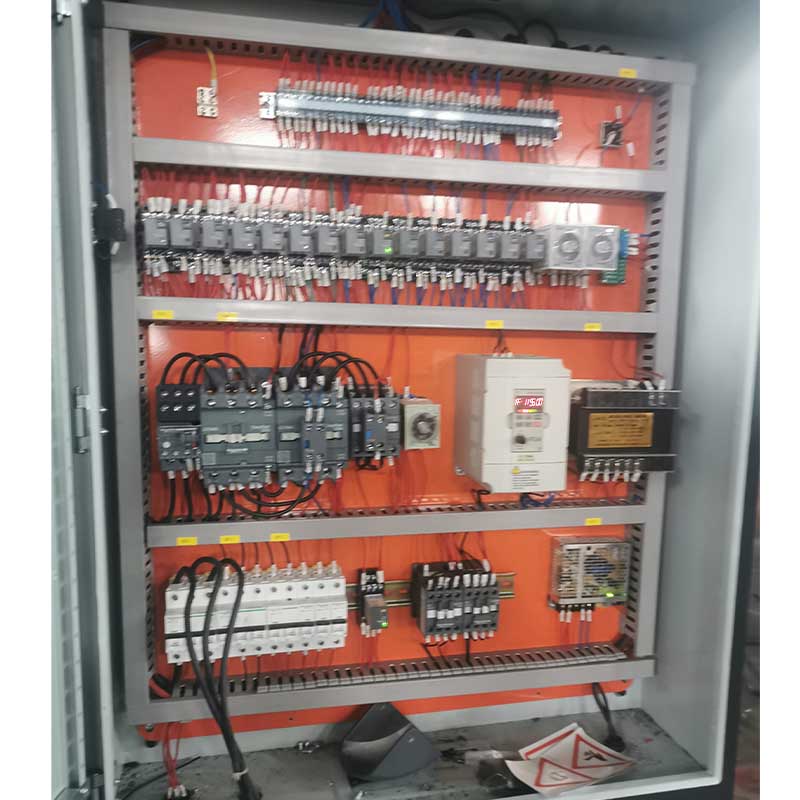

6.Enhanced Safety – Safety fence and electrical interlock system designed to protect operators during operation.
7.Versatile Applications – Ideal for large steel plate bending in construction, shipbuilding, and heavy equipment industries.
.
Machine Details
