Description

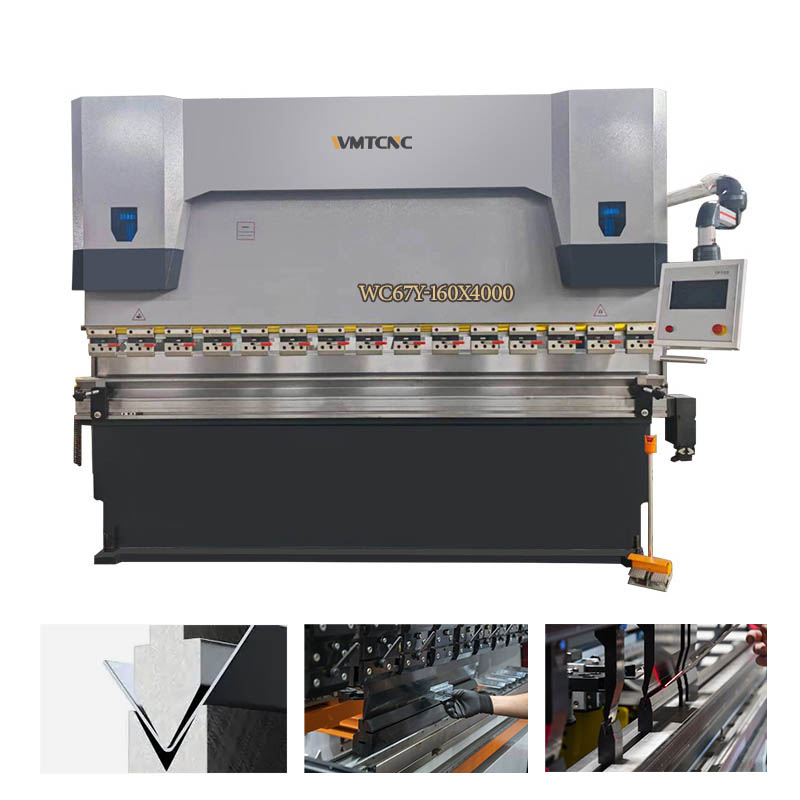

The WC67Y-160X4000 hydraulic steel bending press brake is engineered for demanding sheet metal fabrication tasks. With a bending capacity of 160 tons and a working length of 4000mm, it is specifically designed to process wide and thick metal sheets with consistency and accuracy.
Its hydraulic proportional control system ensures smooth operation and precise synchronization, even under heavy workloads. The robust frame, manufactured from high-strength welded steel and treated to relieve stress, minimizes deformation and guarantees long-term stability.
This press brake can be configured with manual, NC, or CNC controllers, offering flexibility for different production requirements. From industrial machinery and construction steel structures to shipbuilding and automotive components, the WC67Y-160X4000 provides reliability and efficiency for modern manufacturing.
Specifications
| Model | Nominal Pressure | Length of working table | Distance between uprights | Throat Depths | Stroke | Open height | Motor power |
|---|---|---|---|---|---|---|---|
| WC67Y/K-30/1600 | 300 kN | 1600 mm | 1250 mm | 200 mm | 90 mm | 300 mm | 4 kw |
| WC67Y/K-40/2000 | 400 kN | 2000 mm | 1650 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-40/2500 | 400 kN | 2500 mm | 2100 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-63/2500 | 630 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-63/3200 | 630 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-80/2500 | 800 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-80/3200 | 800 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/2500 | 1000 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/3200 | 1000 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/4000 | 1000 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/2500 | 1250 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/3200 | 1250 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/4000 | 1250 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-160/3200 | 1600 kN | 3200 mm | 2450 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-160/4000 | 1600 kN | 4000 mm | 3090 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-200/3200 | 2000 kN | 3200 mm | 2450 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/4000 | 2000 kN | 4000 mm | 3090 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/6000 | 2000 kN | 6000 mm | 4800 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-250/3200 | 2500 kN | 3200 mm | 2450 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/4000 | 2500 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/6000 | 2500 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-300/3200 | 3000 kN | 3200 mm | 2530 mm | 400 mm | 250 mm | 500 mm | 22 kw |
| WC67Y/K-300/4000 | 3000 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-300/6000 | 3000 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-400/4000 | 4000 kN | 4000 mm | 3090 mm | 400 mm | 320 mm | 600 mm | 22 kw |
| WC67Y/K-400/6000 | 4000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 37 kw |
| WC67Y/K-500/4000 | 5000 kN | 4000 mm | 3100 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-500/6000 | 5000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/4000 | 6000 kN | 4000 mm | 6200 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/6000 | 6000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
Features
1.Large Bending Capacity – Handles long and thick steel plates with ease, ideal for heavy-duty applications.
2.Advanced Hydraulic System – Proportional valve technology provides accurate pressure control and consistent bending results.
3.Stable and Rigid Frame – Heavy-duty welded body ensures durability and minimizes vibration during operation.
4.Versatile Control Options – Compatible with E21 NC system, or upgraded CNC controls for multi-step programming.
5.User-Oriented Design – Simplified setup, quick tool change, and ergonomic control panel improve operator efficiency.
.

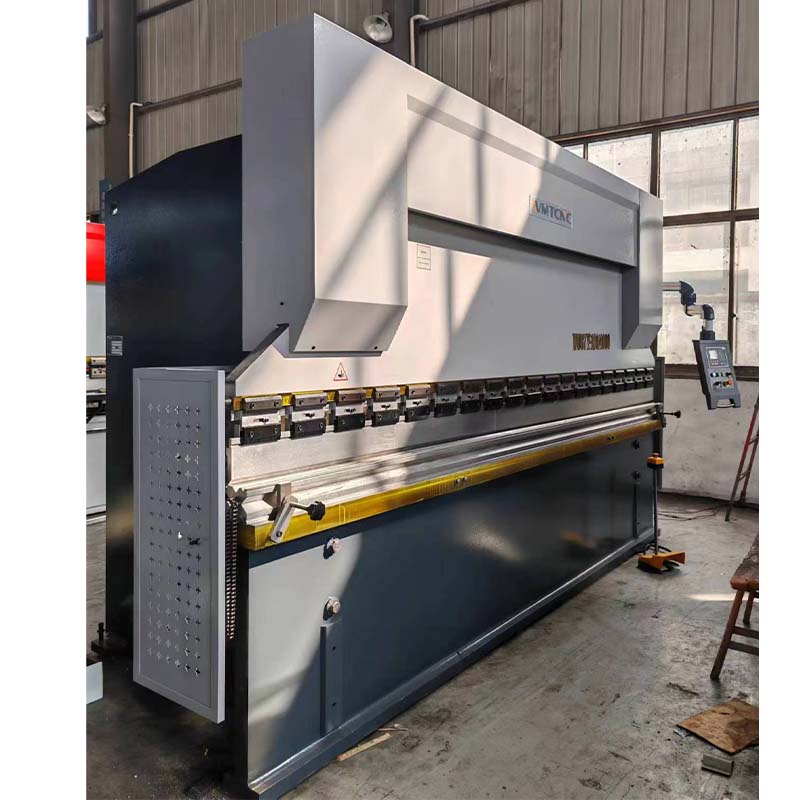

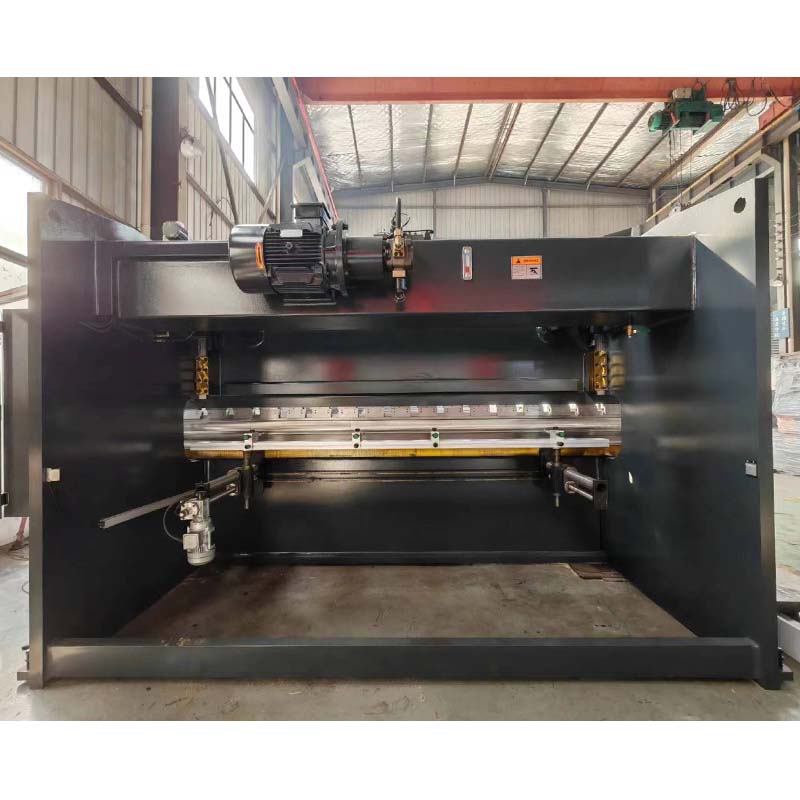

Machine Details
