Description

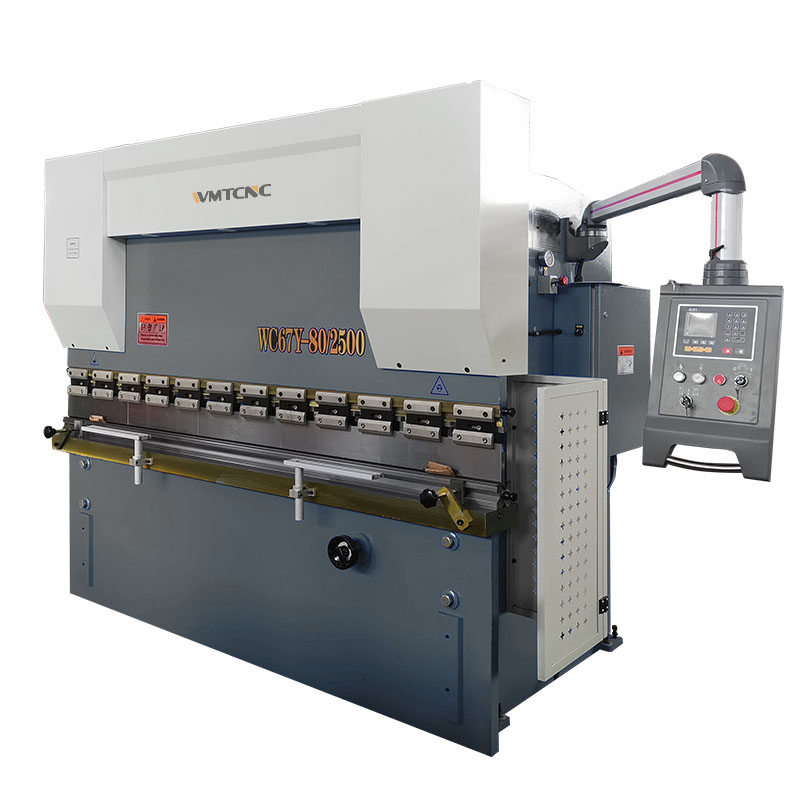

The WC67Y-80-2500 Hydraulic Press Brake is a high-performance metal bending machine designed for precision, efficiency, and durability. With a bending capacity of 80 tons and a working length of 2500mm, it is ideal for medium-sized sheet metal fabrication tasks.
Built with a welded steel frame and advanced hydraulic system, this press brake ensures long-term stability and accuracy. It features CNC or E21 digital control options, supporting multi-step programming for enhanced productivity. Its compact design and reliable performance make it suitable for industries such as automotive, aerospace, appliance manufacturing, and general metal fabrication.
Specifications of WC67Y Hydraulic Press
| Model | Nominal Pressure | Length of working table | Distance between uprights | Throat Depths | Stroke | Open height | Motor power |
|---|---|---|---|---|---|---|---|
| WC67Y/K-30/1600 | 300 kN | 1600 mm | 1250 mm | 200 mm | 90 mm | 300 mm | 4 kw |
| WC67Y/K-40/2000 | 400 kN | 2000 mm | 1650 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-40/2500 | 400 kN | 2500 mm | 2100 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-63/2500 | 630 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-63/3200 | 630 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-80/2500 | 800 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-80/3200 | 800 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/2500 | 1000 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/3200 | 1000 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/4000 | 1000 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/2500 | 1250 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/3200 | 1250 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/4000 | 1250 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-160/3200 | 1600 kN | 3200 mm | 2450 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-160/4000 | 1600 kN | 4000 mm | 3090 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-200/3200 | 2000 kN | 3200 mm | 2450 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/4000 | 2000 kN | 4000 mm | 3090 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/6000 | 2000 kN | 6000 mm | 4800 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-250/3200 | 2500 kN | 3200 mm | 2450 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/4000 | 2500 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/6000 | 2500 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-300/3200 | 3000 kN | 3200 mm | 2530 mm | 400 mm | 250 mm | 500 mm | 22 kw |
| WC67Y/K-300/4000 | 3000 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-300/6000 | 3000 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-400/4000 | 4000 kN | 4000 mm | 3090 mm | 400 mm | 320 mm | 600 mm | 22 kw |
| WC67Y/K-400/6000 | 4000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 37 kw |
| WC67Y/K-500/4000 | 5000 kN | 4000 mm | 3100 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-500/6000 | 5000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/4000 | 6000 kN | 4000 mm | 6200 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/6000 | 6000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
Features

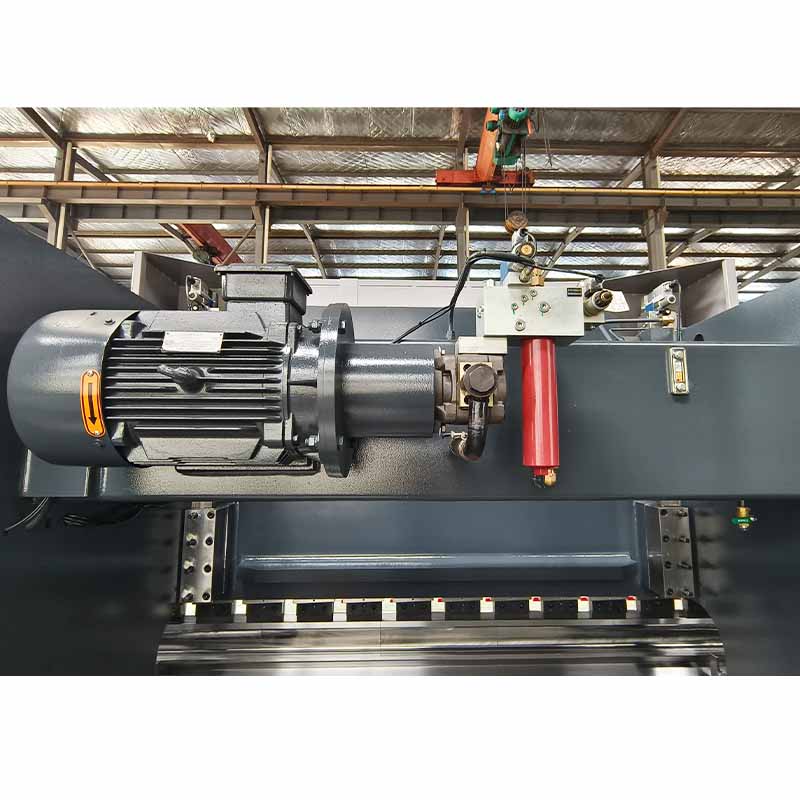

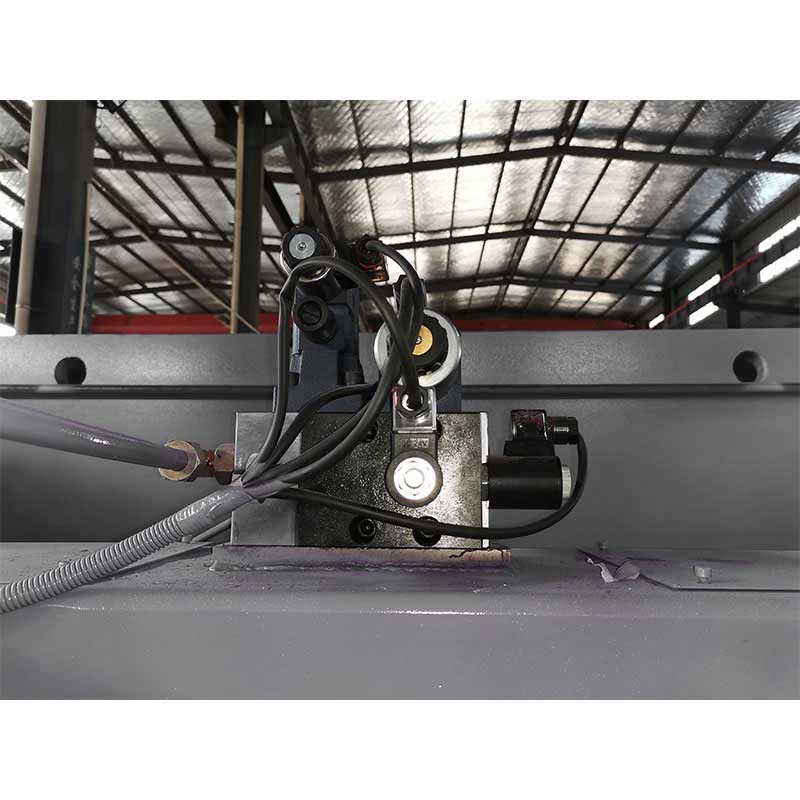

1.Strong Hydraulic System – Equipped with an integrated hydraulic control system for smooth and reliable performance.
2.Robust Structure – Heavy-duty welded steel frame with stress-relief treatment for excellent rigidity and durability.

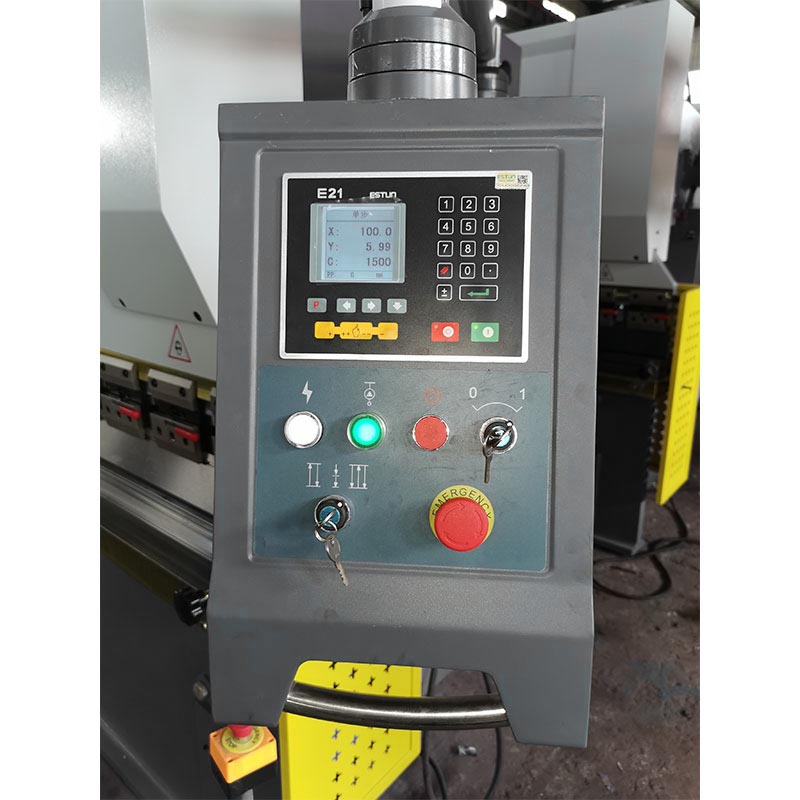

3.User-Friendly Operation – Digital or CNC control system allows easy programming, quick setup, and efficient production.
4.Safety Assurance – Includes light curtain protection and emergency stop system to safeguard operators.

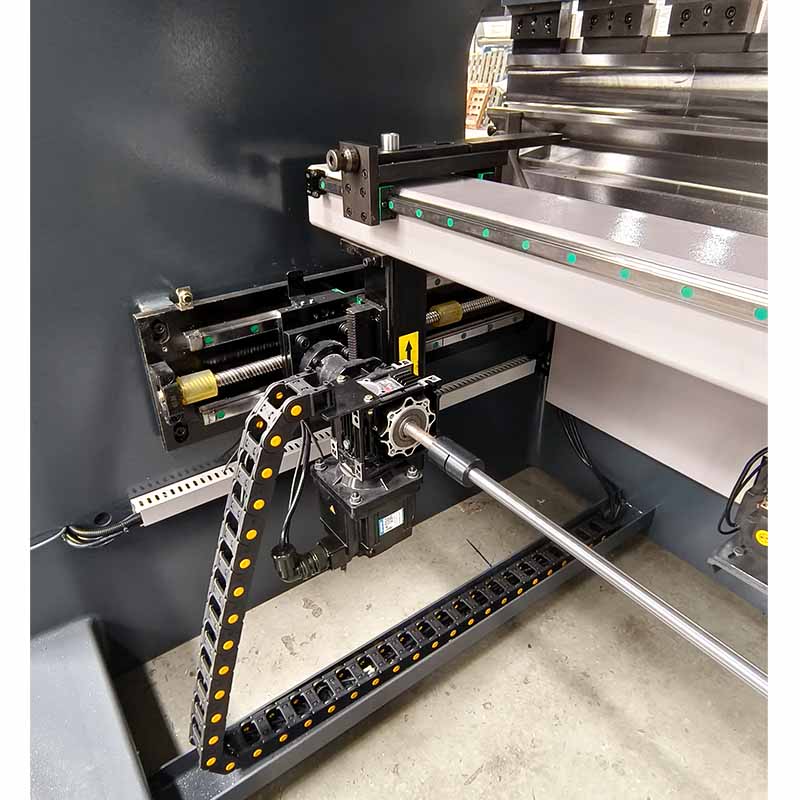

5.Customizable Options – Available with CNC upgrades, special tooling, and automated backgauge systems for specific production needs.

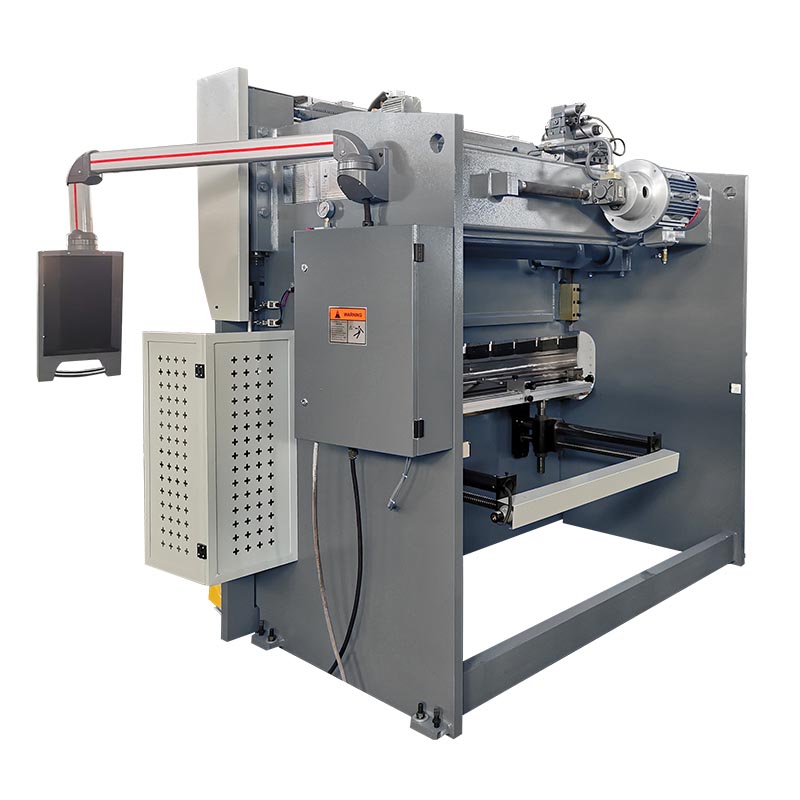

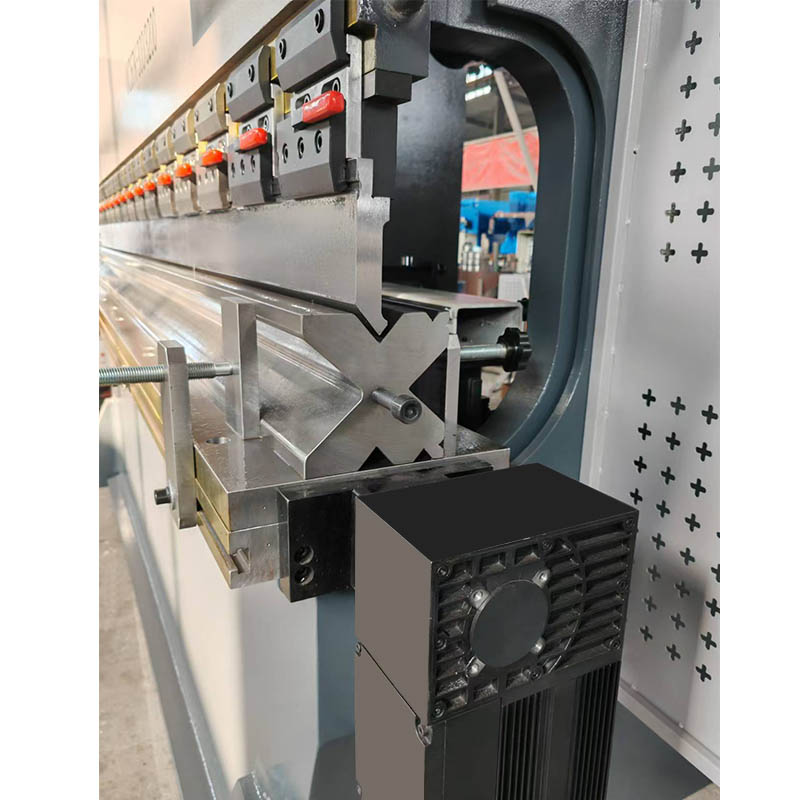

Machine Details
FAQ
1. What is a press brake used for? Learn more>>
A press brake is a machine used to bend sheet metal into various shapes, such as angles or curves. It uses a die and punch mechanism to apply force to the metal, making it an essential tool in metalworking, automotive, and construction industries.
2. What is the difference between a press brake and a sheet bending machine? Learn more>>
A sheet bending machine is a general term for any machine that bends metal sheets, including press brakes. However, press brakes specifically refer to machines with a mechanism designed to apply force in a controlled manner, making them ideal for precise bends in sheet metal.
3. How does a hydraulic press brake work?
A hydraulic press brake uses hydraulic force to bend metal sheets. It’s equipped with a powerful hydraulic system that applies consistent pressure, providing better control and higher capacity for bending thicker materials compared to manual or mechanical machines.
4. What factors influence the price of a press brake?
The price of a press brake is influenced by its size, bending capacity, whether it’s hydraulic or manual, and any added features such as CNC control. Hydraulic press brakes are typically priced higher due to their advanced functionality and increased efficiency.
