Description

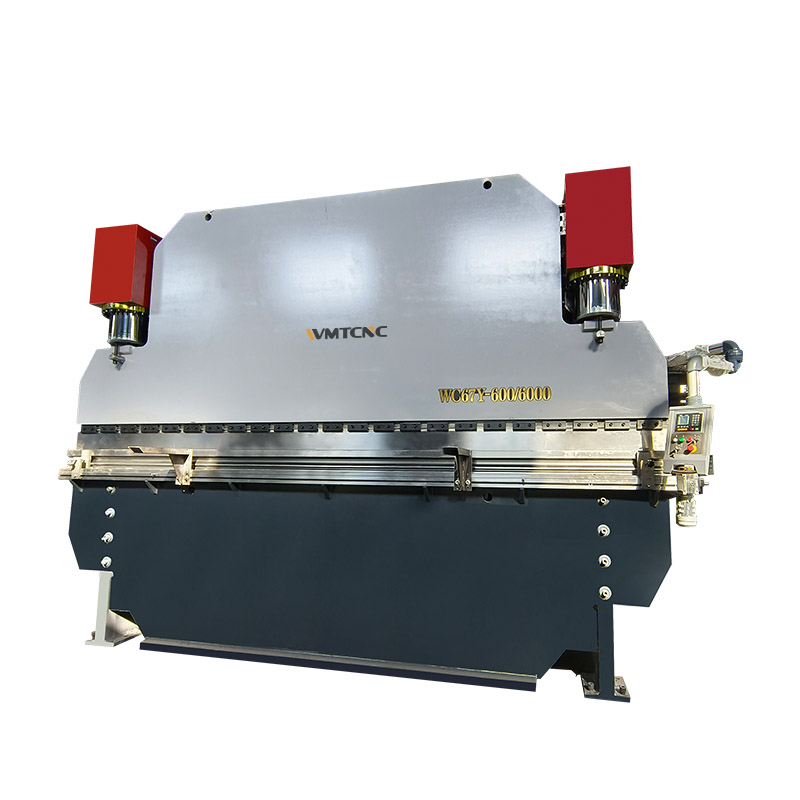

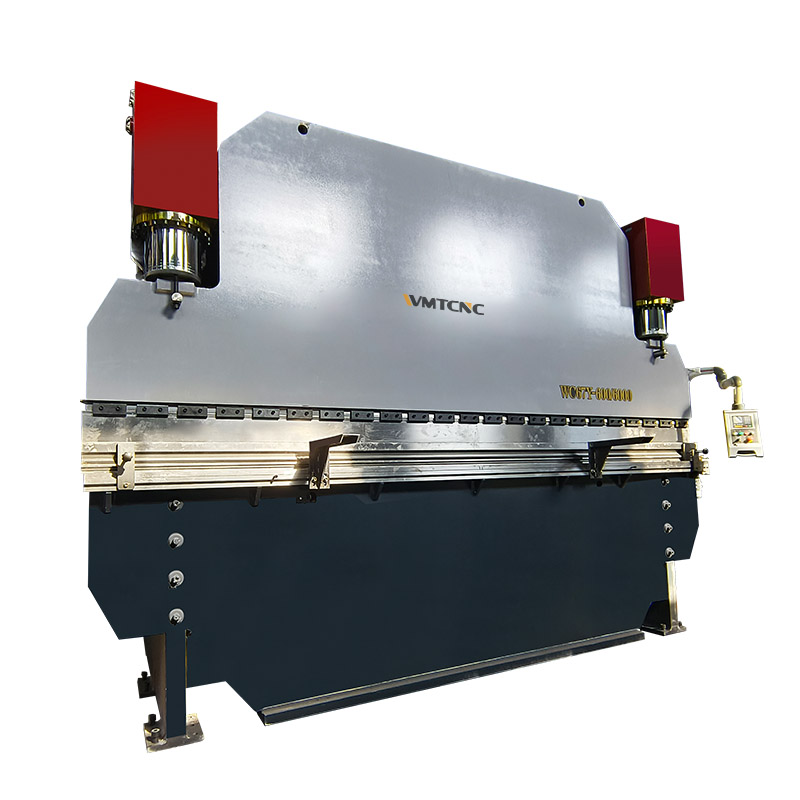

The WC67Y-600X6000 heavy-duty press brake is designed for large-format sheet metal fabrication and heavy industrial applications. With a pressing force of 600 tons and a working length of 6000mm, it is capable of handling oversized steel plates and high-strength materials with precision and consistency.
This machine features a reinforced steel frame that has undergone vibration stress relief to ensure exceptional rigidity and durability. Its advanced hydraulic drive system provides smooth operation, stable pressure control, and long service life, even under maximum load conditions.
Specifications
| Model | Nominal Pressure | Length of working table | Distance between uprights | Throat Depths | Stroke | Open height | Motor power |
|---|---|---|---|---|---|---|---|
| WC67Y/K-30/1600 | 300 kN | 1600 mm | 1250 mm | 200 mm | 90 mm | 300 mm | 4 kw |
| WC67Y/K-40/2000 | 400 kN | 2000 mm | 1650 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-40/2500 | 400 kN | 2500 mm | 2100 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-63/2500 | 630 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-63/3200 | 630 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-80/2500 | 800 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-80/3200 | 800 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/2500 | 1000 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/3200 | 1000 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/4000 | 1000 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/2500 | 1250 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/3200 | 1250 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/4000 | 1250 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-160/3200 | 1600 kN | 3200 mm | 2450 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-160/4000 | 1600 kN | 4000 mm | 3090 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-200/3200 | 2000 kN | 3200 mm | 2450 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/4000 | 2000 kN | 4000 mm | 3090 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-200/6000 | 2000 kN | 6000 mm | 4800 mm | 350 mm | 200 mm | 465 mm | 15 kw |
| WC67Y/K-250/3200 | 2500 kN | 3200 mm | 2450 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/4000 | 2500 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-250/6000 | 2500 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 500 mm | 18.5 kw |
| WC67Y/K-300/3200 | 3000 kN | 3200 mm | 2530 mm | 400 mm | 250 mm | 500 mm | 22 kw |
| WC67Y/K-300/4000 | 3000 kN | 4000 mm | 3090 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-300/6000 | 3000 kN | 6000 mm | 4800 mm | 400 mm | 250 mm | 535 mm | 22 kw |
| WC67Y/K-400/4000 | 4000 kN | 4000 mm | 3090 mm | 400 mm | 320 mm | 600 mm | 22 kw |
| WC67Y/K-400/6000 | 4000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 37 kw |
| WC67Y/K-500/4000 | 5000 kN | 4000 mm | 3100 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-500/6000 | 5000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/4000 | 6000 kN | 4000 mm | 6200 mm | 400 mm | 300 mm | 600 mm | 45 kw |
| WC67Y/K-600/6000 | 6000 kN | 6000 mm | 4800 mm | 400 mm | 300 mm | 600 mm | 45 kw |
Features
1.Extra High Capacity – 600T bending force with 6000mm length, ideal for oversized and thick steel plates.
2.Durable Steel Frame – Fully welded structure with vibration stress relief for maximum rigidity and stability.
3.Hydraulic Drive System – Reliable hydraulic top-drive with imported sealing components for smooth and long-lasting performance.
4.Precision Synchronization – Dual hydraulic cylinders with torsion bar technology ensure parallel accuracy and consistent results.
5.Motorized Backgauge – Stroke and distance adjustable by motor, with digital or CNC display for precise settings.
6.Deflection Compensation – Hydraulic crowning device minimizes deformation during large-scale bending tasks.
7.Operator Safety – Equipped with protective fencing, interlocking systems, and emergency stop features.
8.Industrial Applications – Perfect for heavy industries such as shipbuilding, energy, steel construction, and large machinery production.
.
Machine Details
