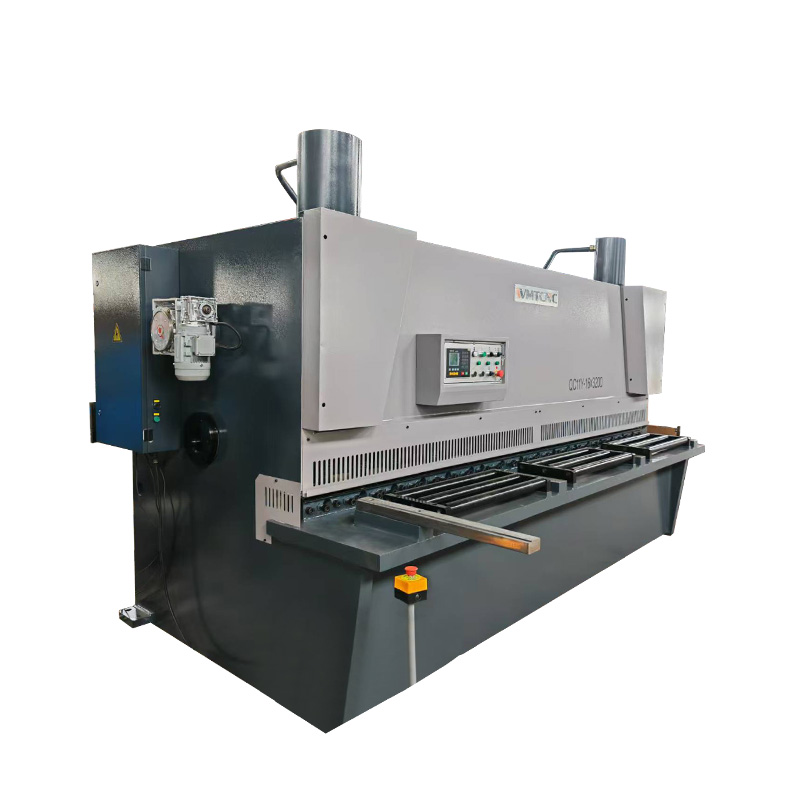

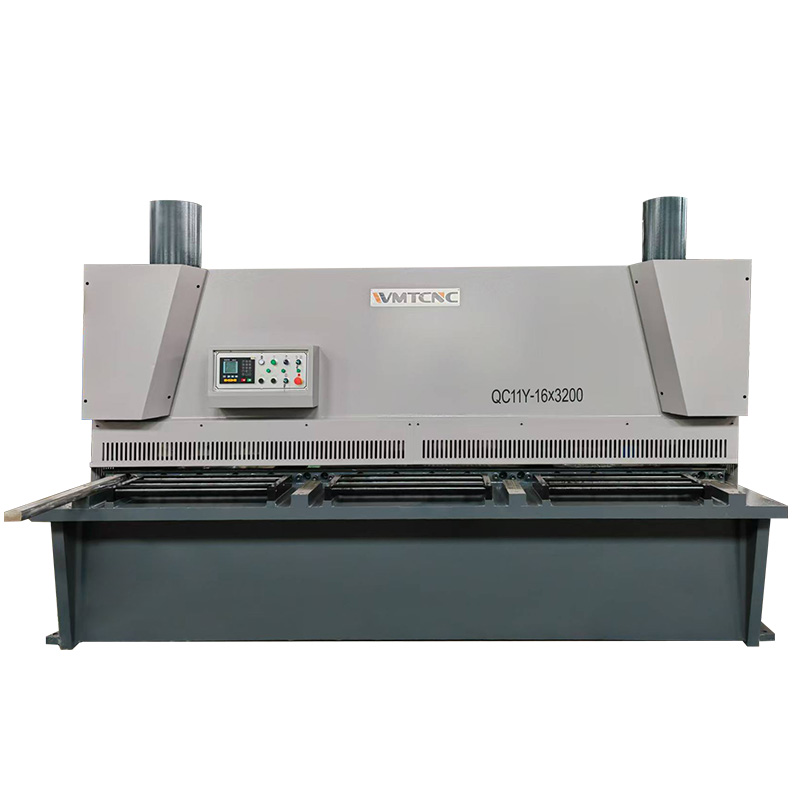

16mm Hydraulic Sheet Metal Guillotine QC11Y-16X3200

16mm Hydraulic Sheet Metal Guillotine Machine QC11Y-16X3200

Cutting length: 2500/3200/4000/6000mm
Cutting thickness: 16mm
Back gauge range: 20-600mm
Motor power: 18.5kw
Brand Name:WMTCNC

Description

The Hydraulic Sheet Metal Guillotine QC11Y-16X3200 is designed for precision cutting of sheet metal and steel plates in demanding industrial environments. Built with a welded heavy-duty steel frame, this guillotine shear offers exceptional rigidity and vibration resistance, ensuring long-lasting stability even under continuous high-load operations.

Fitted with high-carbon high-chromium guillotine blades, the QC11Y-16X3200 guarantees smooth, burr-free cuts with minimal deformation. Its advanced hydraulic system delivers steady cutting force, while the adjustable shear angle adapts to various material types and thicknesses for optimal results.

With a cutting capacity of up to 16mm thickness and a 3200mm maximum cutting length, this machine is perfect for large-format sheet metal projects such as steel structures, shipbuilding, and heavy machinery manufacturing. The motorized back gauge system ensures precise and repeatable cutting, reducing waste and improving productivity.

Specifications

Model	Shear Thickness	Shear Width	Shear Angle	Number of Stroke	Backgauge Range	Main Power
QC11Y/K-6×2500	6 mm	2500 mm	30′-1º30′	16-35 min-1	10-600 mm	7.5 kw
QC11Y/K-6×3200	6 mm	3200 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-6×4000	6 mm	4000 mm	30′-1º30′	10-30 min-1	10-600 mm	7.5 kw
QC11Y/K-6×6000	6 mm	6000 mm	30′-1º30′	8-25 min-1	10-800 mm	11 kw
QC11Y/K-8×2500	8 mm	2500 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-8×3200	8 mm	3200 mm	30′-1º30′	12-30 min-1	10-600 mm	11 kw
QC11Y/K-8×4000	8 mm	4000 mm	30′-1º30′	10-25 min-1	10-600 mm	11 kw
QC11Y/K-8×6000	8 mm	6000 mm	1º-2º	8-20 min-1	20-800 mm	15 kw
QC11Y/K-12×2500	12 mm	2500 mm	1º-2º	12-25 min-1	20-600 mm	18.5 kw
QC11Y/K-12×3200	12 mm	3200 mm	1º-2º	10-22 min-1	20-600 mm	18.5 kw
QC11Y/K-12×4000	12 mm	4000 mm	1º-2º	8-20 min-1	20-600 mm	18.5 kw
QC11Y/K-12×6000	12 mm	6000 mm	1º-2º30′	6-15 min-1	20-800 mm	22 kw
QC11Y/K-16×2500	16 mm	2500 mm	1º-2º30′	12-22 min-1	20-600 mm	18.5 kw
QC11Y/K-16×3200	16 mm	3200 mm	1º-2º30′	10-20 min-1	20-600 mm	18.5 kw
QC11Y/K-16×4000	16 mm	4000 mm	1º-2º30′	8-15 min-1	20-600 mm	18.5 kw
QC11Y/K-16×6000	16 mm	6000 mm	1º-3º	6-15 min-1	20-800 mm	22 kw
QC11Y/K-20×2500	20 mm	2500 mm	1º-3º	8-20 min-1	20-800 mm	22 kw
QC11Y/K-20×3200	20 mm	3200 mm	1º-3º	8-15 min-1	20-800 mm	22 kw
QC11Y/K-20×4000	20 mm	4000 mm	1º-3º	6-12 min-1	20-800 mm	30 kw
QC11Y/K-25×2500	25 mm	2500 mm	1º-3º	5-12 min-1	20-800 mm	30 kw
QC11Y/K-25×3200	25 mm	3200 mm	1º-3º	5-10 min-1	20-800 mm	30 kw
QC11Y/K-25×4000	25 mm	4000 mm	1º-3º	6-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×2500	32 mm	2500 mm	1º-3º30′	5-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×3200	32 mm	3200 mm	1º-3º30′	5-10 min-1	20-1000 mm	37 kw
QC11Y/K-32×4000	32 mm	4000 mm	1º-3º30′	8-12 min-1	20-1000 mm	55 kw
QC11Y/K-40×2500	40 mm	2500 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×3200	40 mm	3200 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×4000	40 mm	4000 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
