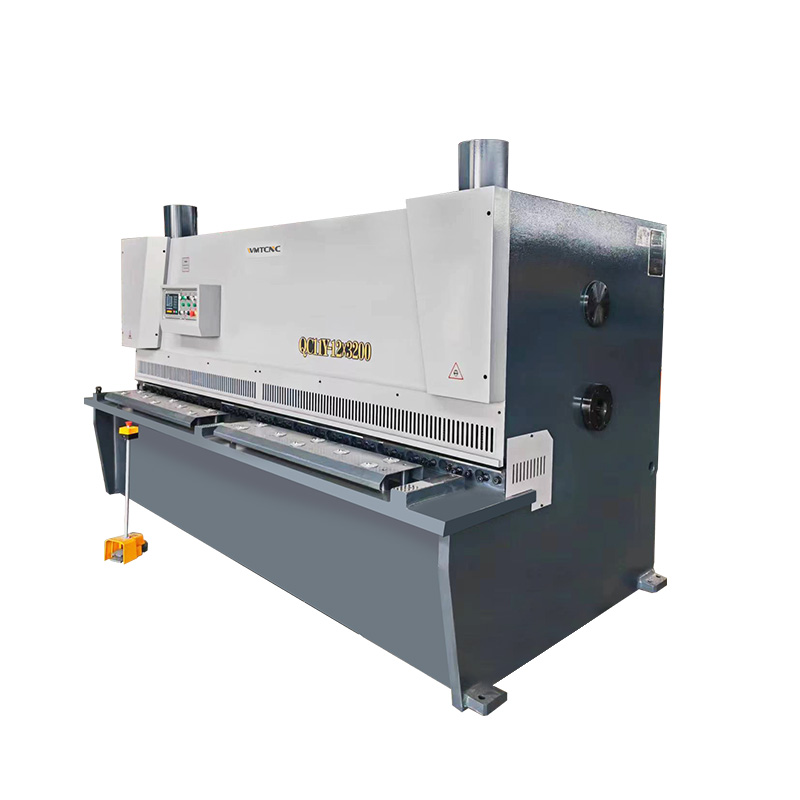

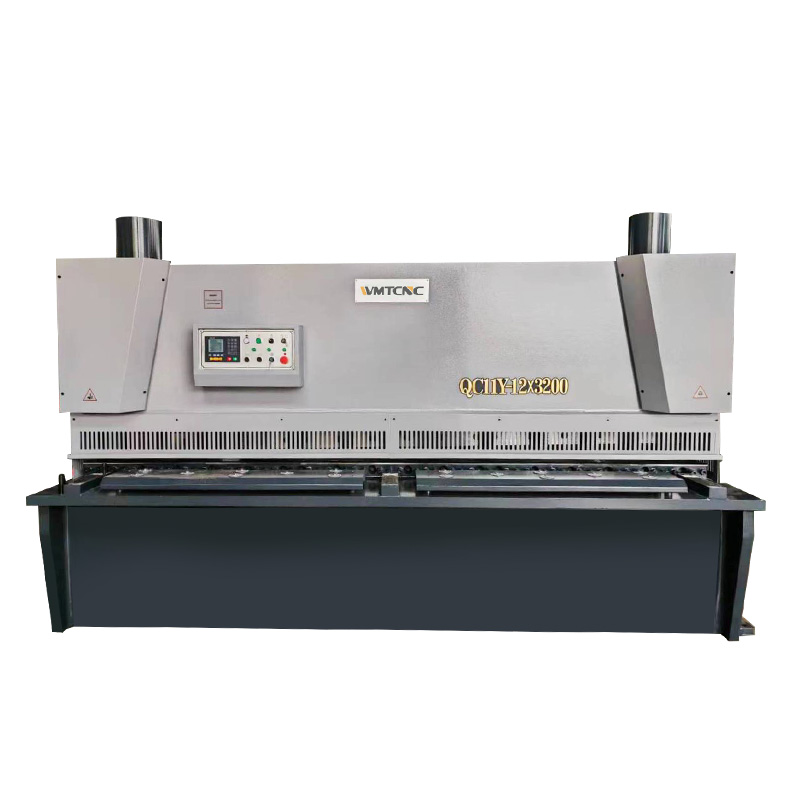

QC11Y-12X3200 Industrial Hydraulic Guillotine Shear

Description

The Industrial Hydraulic Guillotine Shear QC11Y-12X3200 is a high-performance cutting solution designed for precision sheet metal and plate processing in industrial settings. Built with a reinforced welded steel frame, it delivers superior rigidity, vibration resistance, and long-lasting durability.

Equipped with hardened guillotine blades and a powerful hydraulic drive system, this shear produces clean, accurate cuts with minimal burrs — ensuring top-quality results every time. The adjustable shear angle and back gauge system allow operators to control cutting dimensions precisely, reducing waste and maximizing material efficiency.

With a cutting capacity of up to 12mm thickness and 3200mm cutting length, the QC11Y-12X3200 is ideal for large-format sheet metal processing, from mild steel to stainless steel and aluminum plates. Whether you’re producing structural components, fabrication parts, or custom sheet metal products, this machine meets the demands of high-volume production.

Specifications

Model	Shear Thickness	Shear Width	Shear Angle	Number of Stroke	Backgauge Range	Main Power
QC11Y/K-6×2500	6 mm	2500 mm	30′-1º30′	16-35 min-1	10-600 mm	7.5 kw
QC11Y/K-6×3200	6 mm	3200 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-6×4000	6 mm	4000 mm	30′-1º30′	10-30 min-1	10-600 mm	7.5 kw
QC11Y/K-6×6000	6 mm	6000 mm	30′-1º30′	8-25 min-1	10-800 mm	11 kw
QC11Y/K-8×2500	8 mm	2500 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-8×3200	8 mm	3200 mm	30′-1º30′	12-30 min-1	10-600 mm	11 kw
QC11Y/K-8×4000	8 mm	4000 mm	30′-1º30′	10-25 min-1	10-600 mm	11 kw
QC11Y/K-8×6000	8 mm	6000 mm	1º-2º	8-20 min-1	20-800 mm	15 kw
QC11Y/K-12×2500	12 mm	2500 mm	1º-2º	12-25 min-1	20-600 mm	18.5 kw
QC11Y/K-12×3200	12 mm	3200 mm	1º-2º	10-22 min-1	20-600 mm	18.5 kw
QC11Y/K-12×4000	12 mm	4000 mm	1º-2º	8-20 min-1	20-600 mm	18.5 kw
QC11Y/K-12×6000	12 mm	6000 mm	1º-2º30′	6-15 min-1	20-800 mm	22 kw
QC11Y/K-16×2500	16 mm	2500 mm	1º-2º30′	12-22 min-1	20-600 mm	18.5 kw
QC11Y/K-16×3200	16 mm	3200 mm	1º-2º30′	10-20 min-1	20-600 mm	18.5 kw
QC11Y/K-16×4000	16 mm	4000 mm	1º-2º30′	8-15 min-1	20-600 mm	18.5 kw
QC11Y/K-16×6000	16 mm	6000 mm	1º-3º	6-15 min-1	20-800 mm	22 kw
QC11Y/K-20×2500	20 mm	2500 mm	1º-3º	8-20 min-1	20-800 mm	22 kw
QC11Y/K-20×3200	20 mm	3200 mm	1º-3º	8-15 min-1	20-800 mm	22 kw
QC11Y/K-20×4000	20 mm	4000 mm	1º-3º	6-12 min-1	20-800 mm	30 kw
QC11Y/K-25×2500	25 mm	2500 mm	1º-3º	5-12 min-1	20-800 mm	30 kw
QC11Y/K-25×3200	25 mm	3200 mm	1º-3º	5-10 min-1	20-800 mm	30 kw
QC11Y/K-25×4000	25 mm	4000 mm	1º-3º	6-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×2500	32 mm	2500 mm	1º-3º30′	5-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×3200	32 mm	3200 mm	1º-3º30′	5-10 min-1	20-1000 mm	37 kw
QC11Y/K-32×4000	32 mm	4000 mm	1º-3º30′	8-12 min-1	20-1000 mm	55 kw
QC11Y/K-40×2500	40 mm	2500 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×3200	40 mm	3200 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×4000	40 mm	4000 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
