Hydraulic Guillotine Shear Machine | Sheet Metal & Plate Cutting

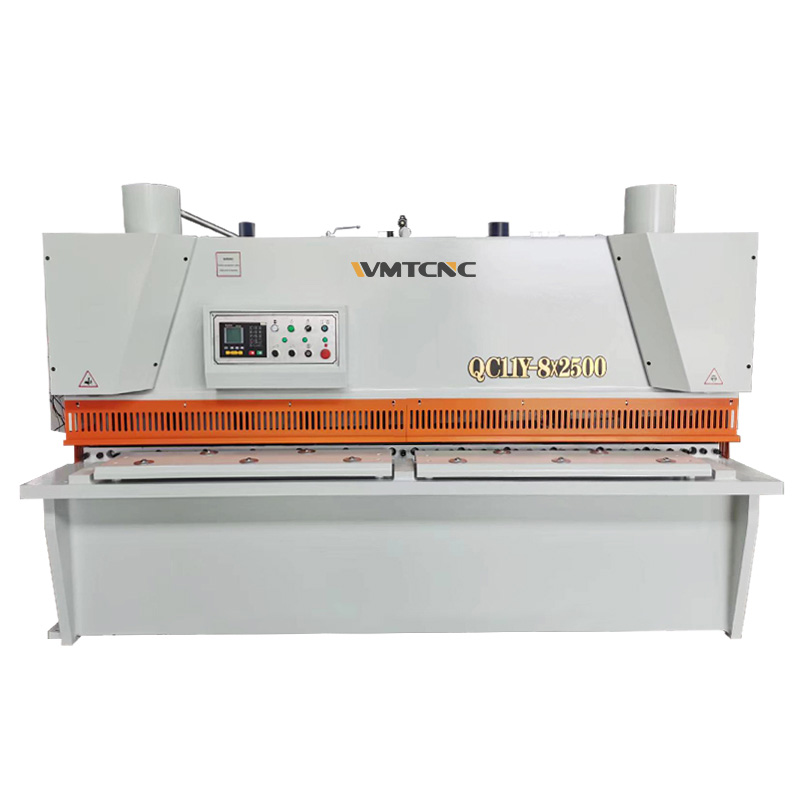

QC11Y-8X2500 Hydraulic Guillotine Shearing Machine for Metal Fabrication

Cutting length: 2500/3200/4000/6000mm
Cutting thickness: 8mm
Back gauge range: 10-600mm
Motor power: 7.5kW / 11kW
Brand Name:WMTCNC

Description

The Hydraulic Guillotine Shear Machine is designed for high-precision sheet metal and steel plate cutting. Built with heavy-duty construction, a sharp guillotine blade, and advanced hydraulic control, it delivers clean, accurate cuts every time. Whether you need a CNC hydraulic guillotine shear for automated operations or a heavy-duty hydraulic guillotine shearing machine for industrial use, this model ensures efficiency, reliability, and long service life.

Specifications

Model	Shear Thickness	Shear Width	Shear Angle	Number of Stroke	Backgauge Range	Main Power
QC11Y/K-6×2500	6 mm	2500 mm	30′-1º30′	16-35 min-1	10-600 mm	7.5 kw
QC11Y/K-6×3200	6 mm	3200 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-6×4000	6 mm	4000 mm	30′-1º30′	10-30 min-1	10-600 mm	7.5 kw
QC11Y/K-6×6000	6 mm	6000 mm	30′-1º30′	8-25 min-1	10-800 mm	11 kw
QC11Y/K-8×2500	8 mm	2500 mm	30′-1º30′	14-32 min-1	10-600 mm	7.5 kw
QC11Y/K-8×3200	8 mm	3200 mm	30′-1º30′	12-30 min-1	10-600 mm	11 kw
QC11Y/K-8×4000	8 mm	4000 mm	30′-1º30′	10-25 min-1	10-600 mm	11 kw
QC11Y/K-8×6000	8 mm	6000 mm	1º-2º	8-20 min-1	20-800 mm	15 kw
QC11Y/K-12×2500	12 mm	2500 mm	1º-2º	12-25 min-1	20-600 mm	18.5 kw
QC11Y/K-12×3200	12 mm	3200 mm	1º-2º	10-22 min-1	20-600 mm	18.5 kw
QC11Y/K-12×4000	12 mm	4000 mm	1º-2º	8-20 min-1	20-600 mm	18.5 kw
QC11Y/K-12×6000	12 mm	6000 mm	1º-2º30′	6-15 min-1	20-800 mm	22 kw
QC11Y/K-16×2500	16 mm	2500 mm	1º-2º30′	12-22 min-1	20-600 mm	18.5 kw
QC11Y/K-16×3200	16 mm	3200 mm	1º-2º30′	10-20 min-1	20-600 mm	18.5 kw
QC11Y/K-16×4000	16 mm	4000 mm	1º-2º30′	8-15 min-1	20-600 mm	18.5 kw
QC11Y/K-16×6000	16 mm	6000 mm	1º-3º	6-15 min-1	20-800 mm	22 kw
QC11Y/K-20×2500	20 mm	2500 mm	1º-3º	8-20 min-1	20-800 mm	22 kw
QC11Y/K-20×3200	20 mm	3200 mm	1º-3º	8-15 min-1	20-800 mm	22 kw
QC11Y/K-20×4000	20 mm	4000 mm	1º-3º	6-12 min-1	20-800 mm	30 kw
QC11Y/K-25×2500	25 mm	2500 mm	1º-3º	5-12 min-1	20-800 mm	30 kw
QC11Y/K-25×3200	25 mm	3200 mm	1º-3º	5-10 min-1	20-800 mm	30 kw
QC11Y/K-25×4000	25 mm	4000 mm	1º-3º	6-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×2500	32 mm	2500 mm	1º-3º30′	5-12 min-1	20-1000 mm	37 kw
QC11Y/K-32×3200	32 mm	3200 mm	1º-3º30′	5-10 min-1	20-1000 mm	37 kw
QC11Y/K-32×4000	32 mm	4000 mm	1º-3º30′	8-12 min-1	20-1000 mm	55 kw
QC11Y/K-40×2500	40 mm	2500 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×3200	40 mm	3200 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
QC11Y/K-40×4000	40 mm	4000 mm	2º-4º	4-10 min-1	20-1000 mm	55 kw
